Product Details:
|
| Place Of Origin: | Beijing, China | Brand Name: | SPARK |
|---|---|---|---|
| Model Number: | 0Cr20Al6 | Type: | Bare |
| Application: | Heating | Conductor Material: | Aluminum |
| Conductor Type: | Solid | Insulation Material: | Rubber |

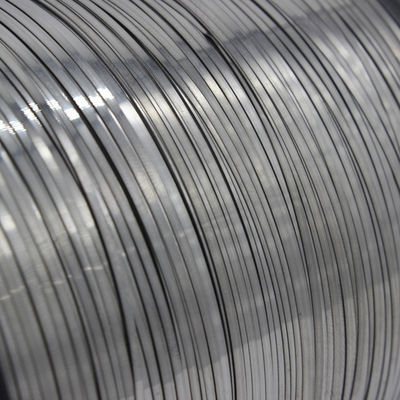

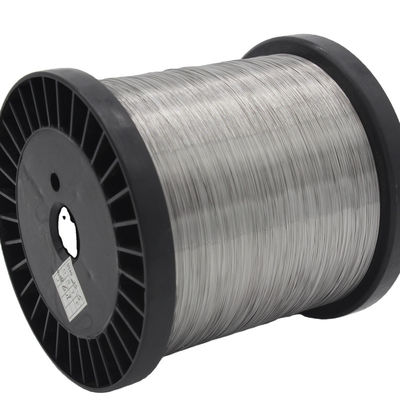

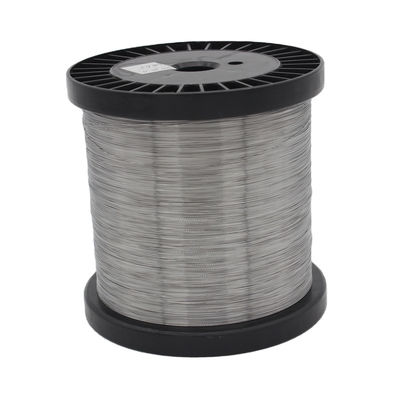

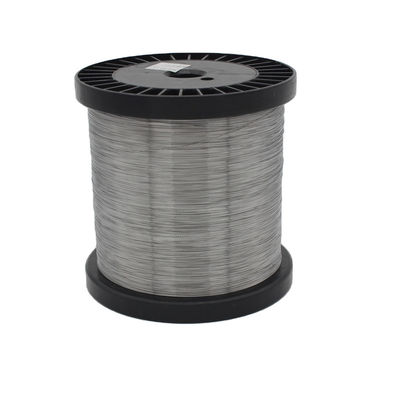

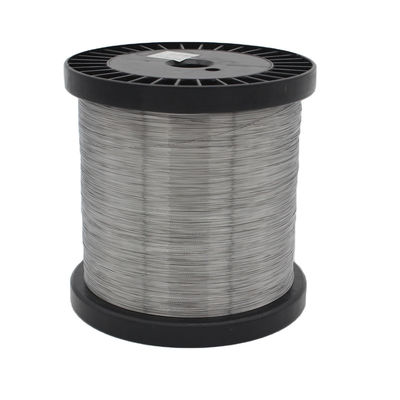

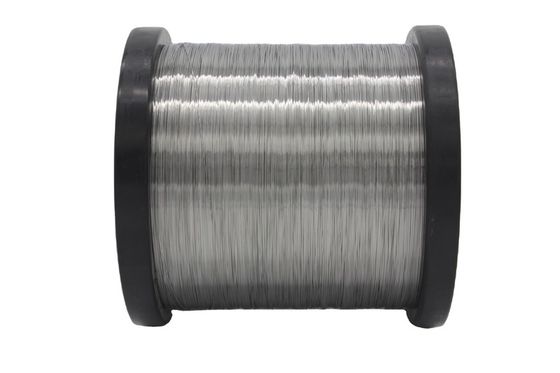

| Colors: | Golden/bright/blue | Product Name: | Fe-Cr-Al Alloy Wire |
| Standard: | GB/T 1234-2012 | Packing: | Wooden Box |
| Elongation(≥%): | >12 | Brand Name:: | SPARK |
| Thickness: | 0.04-0.1mm | Width: | 5-120mm |
| Temperature Range: | 1300 | Certification: | ISO9001 |
Fe-Cr-Al alloys is one of the most widely used electrothermal alloys at home and abroad. It is characterized by high resistivity, small resistance temperature coefficient, good oxidation resistance, high temperature and so on . These alloys are widely used in making industrial heating equipments and domestic heating appliances. Fe-Cr-Al alloys are one of the main products of our company. All resistance heating alloys manufactured by our company are distinguished by uniform composition, high resistivity, accurate dimension, long operating life and good processability. Consumers can select the suitable grade according to different requirements.
Chemical Composition of Stainless Steels
|
Properties |
0Cr21Al6Nb |
0Cr25Al5 |
0Cr23Al5 |
0Cr19Al5 |
0Cr19Al3 |
1Cr13Al4 |
|
Nominal composition Cr Al Fe Ni |
24.0 6.0 Rest —— |
25.0 5.3 Rest —— |
22.0 5.0 Rest —— |
19.0 5.0 Rest —— |
19.0 3.7 Rest —— |
13.5 5.0 Rest —— |
|
Max.continuous operating temperature℃ |
1400 |
1300 |
1250 |
1200 |
1100 |
950 |
|
Temperature factor of the resistivityCt 800℃ 1000℃ 1200℃ |
1.03 1.04 1.04 |
1.05 1.06 1.06 |
1.06 1.07 1.08 |
1.05 1.06 1.06 |
1.17 1.19 —— |
1.13 1.14 —— |
|
Density(g/cm3) |
7.10 |
7.15 |
7.25 |
7.20 |
7.35 |
7.40 |
|
Melting point(approx.)(℃) |
1500 |
1500 |
1500 |
1500 |
1500 |
1450 |
|
Tensile strength(approx.)(N/mm2) |
750 |
750 |
750 |
750 |
750 |
750 |
|
Elongation at rupture(approx.)% |
16 |
16 |
16 |
16 |
16 |
16 |
|
Magnetic properties |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
production process
Raw material factory Smelt steel roll
detection Winding Annealing drawing
