Product Details:
|
| Place Of Origin: | Beijing, China | Brand Name: | SPARK |
|---|---|---|---|
| Model Number: | 0Cr20Al6 | Type: | Bare |
| Application: | Heating | Conductor Material: | Aluminum |
| Conductor Type: | Solid | Insulation Material: | PFA |
| Colors: | Golden/bright/blue | Product Name: | Fe-Cr-Al Alloy Wire |
| Standard: | GB/T 1234-2012 | Size: | 0.25-1.0mm |
| Packing: | Wooden Box | Elongation(≥%): | ≥17 |
| Brand Name:: | SPARK | Package: | DIN160 |
| Tensile Strength: | 650-800 | Temperature: | 1300 |
Metal fibre and its products belong to emerging new functional materials recently. The fibre is characterized with large surface area,high thermal conductivity,good electrical conduction,nice flexibility,favorable high temperature oxidation resistance and excellent corrosion resistance.
At present beaming drawing process needing the alloys with high purity is adopted to product metal fibre at home. Compared with ordinary smelting ways,the technology of double elector-slag refining and special controlling inclusions in our company,combing with ESR refining,make the steel meet the purity request for drawing.By right of proper heat-resisting micro silk’s smelting,the wire drawing technology and the stable highly effective control for product’s quality. Because of the good quality of products received the recognition of the majority of customersour . Our company has become the biggest supplier , occupying the domestic 90% market share . We can customize production according to customers' requirements
Steel grades and Chemical composition
|
Steel grades |
Chemical composition% |
||||||
|
C |
Si |
Mn |
Cr |
Al |
Fe |
rare earth element |
|
|
00Cr20Al6 |
≤0.03 |
≤0.6 |
≤0.6 |
19-22 |
5-6 |
Allowance |
Appropriate amount |
Size range
|
Type |
Specifications |
Packing method |
Single weight(kg) |
remarks |
|

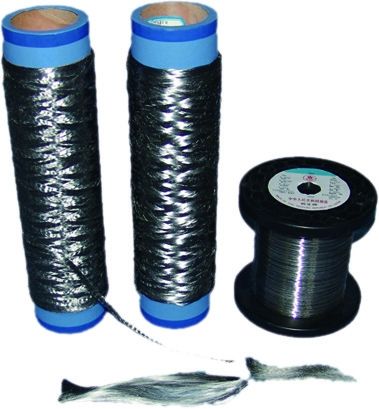

Axial bright filament |
0.25-1.0mm |
DIN160 |
2-6 |
Negotiable |
|

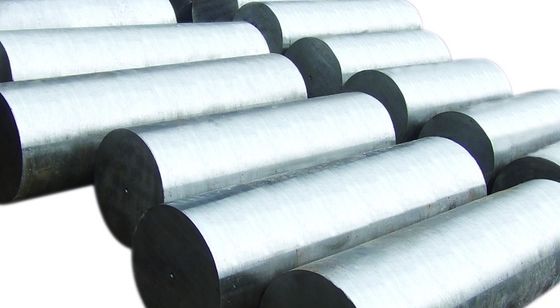

Round billet |
145*500mm |
Wooden plate packaging |
≥50kg |
Negotiable |
Properties
|
Type |
Specifications |
Elongation% |
tensile strength(N/mm²) |
Heat resistant temperature(℃) |
Grain size |
|
Axial bright filament |
0.25-1.0mm |
≥17 |
650-800 |
1300 |
- |
|
Round billet |
145*500mm |
- |
- |
1300 |
≥Grade 1 |
Applications
|
Chemical composition% |
|
|
Axial bright filament |
For producing super fine fibre in beaming drawing process,its the minimum diameter is 1-2um,tensile strength beyond 1800Mpa. As its good flexibility, the fibre can be use to spin and sew; excellent mechanical function such as bending such as bending processability;favorable heating resistance,continuous operated above 600℃. |
|
Round billet |
For producing metal fibre in a cutting way, short or long fibre can be made in a low cost, while finer fibre is higher cost. |
production process
Raw material factory Smelt steel roll
detection Winding Annealing drawing
