Product Details:
Place of Origin: Beijing, China
Brand Name: SPARK
Certification: ISO9001
Model Number: N36
Payment & Shipping Terms:
Minimum Order Quantity: 100.0 Kilograms
Price: $12.00(>=100 Kilograms)
Packaging Details: We use plastic film packaging to package the axle wire, and the outer packaging of the shaft wire uses wooden pallet. The coils are packed in closed wooden cases.
Supply Ability: 1000 Kilogram/Kilograms per Week

Wire Conductor Bar Core Invar Alloy Stainless Steel Heating Element Conductor Core

Description
Place Of Origin: Beijing, China Brand Name: SPARK
Model Number: N36 Application: Conductive Core, Heating Element
Shape: Core Material: Ni-Cr
Chemical Composition: Ni-Cr Colors: Golden/bright/blue
Product Name: N36 Standard: GB/T 1234-2012
Packing: Wooden Box Purity: High Purity
Usage: Widely Elongation(≥%): 20
Resistivity: 1.09 Certificate: ISO9001

Product Description



Size range: 1.5 ~ 3.5mm

Invar 36 low expansion alloy has the following characteristics:

Features: high strength, small coefficient of thermal expansion, long service life

1. It has very low coefficient of thermal expansion between - 250 ℃ and + 200 ℃

2. Good plasticity and toughness

Invar 36 applications

Invar 36 alloy, also known as invar alloy, is used in the environment requiring very low coefficient of expansion. The Curie point of the alloy is about 230 ℃, below which the alloy is ferromagnetic and the coefficient of expansion is very low. When the temperature is higher than this temperature, the alloy has no magnetism and the coefficient of expansion increases. The alloy is mainly used for manufacturing parts with approximate constant size in the range of temperature variation, and is widely used in radio, precision instruments, instruments and other industries.

Typical applications are as follows:

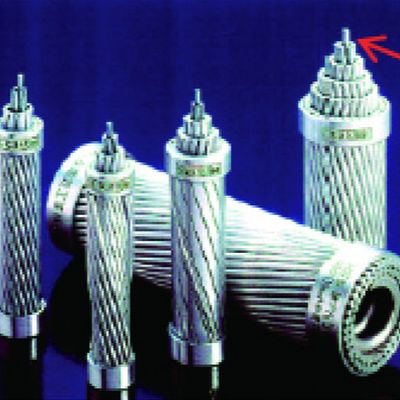

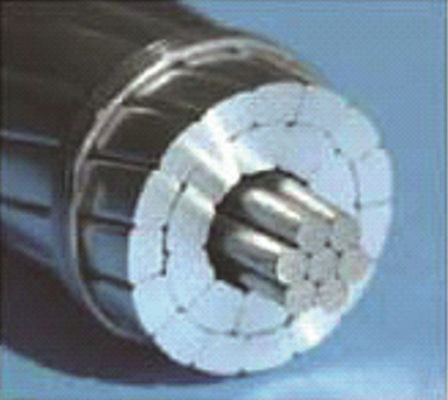

1,The double capacity conductor core used in transmission network can increase the current carrying capacity by 2 times than that of ACSR without changing the sag. In other words, when the length and weight of the cable are the same, the cable made of this core can greatly improve the transmission capacity of power grid.

2,Production, storage and transportation of liquefied gas

3, Measuring and control instruments, such as temperature regulating devices, whose working temperature is lower than + 200 ℃

4, Screw connector bushing between metal and other materials

5, Bimetallic and temperature controlled bimetallic

6, Membrane frame

7, Shadow mask

8, Tempering die for CRP parts in aviation industry

9,Electronic control unit framework for satellites and missiles below - 200 ℃

10,Auxiliary electron tube in electromagnetic lens of laser control deviceChemical composition

alloy

Cu

P

S

Mn

Si



C

Cr

Ni

Nb

Mo

grades



N36

0.02

0.03

0.03

0.04

0.03



0.18-0.25



0.6-1.0



35.0-36.0



Add

0.8-12



Mail performance(Hard state):

grades

Tensile strength

Extension rate(%)

Winding Test 2D

Reverse number 100D

N36

1100N/mm2

2

8 laps

14 laps





Packaging & Shipping



We will choose the shipping way as you required: By sea, by air, by express, etc.

As for the costs and shipping period information, please contact us via telephone, mail or online trade manager.
