Product Details:
|
| Place Of Origin: | Beijing, China | Brand Name: | SPARK |
|---|---|---|---|
| Model Number: | 0Cr23Al5 | Type: | Bare |
| Application: | Heating | Conductor Material: | Aluminum |
| Conductor Type: | Solid | Insulation Material: | Rubber |
| Colors: | Golden/bright/blue | Product Name: | Fe-Cr-Al Alloy Wire |
| Standard: | GB/T 1234-2012 | Size: | 5.5-12.0mm |
| Packing: | Wooden Box | Tensile Strength: | 750N/mm2 |
| Temperature Range: | 950℃ | Elongation: | 16% |
| Certification: | ISO9001 | Usage: | Heating Product |
Resistance heating alloys are one of the main products of our company, they are classified into two categories: Fe-Cr-Al alloys and Ni-Cr alloys. These alloys are widely used in making industrial heating equipments and domestic heating appliances. All resistance heating alloys manufactured by our company are distinguished by uniform composition, high resistivity, accurate dimension, long operating life and good processability. Consumers can select the suitable grade according to different requirements.
Size range
|

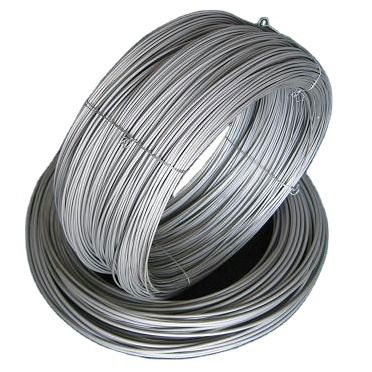

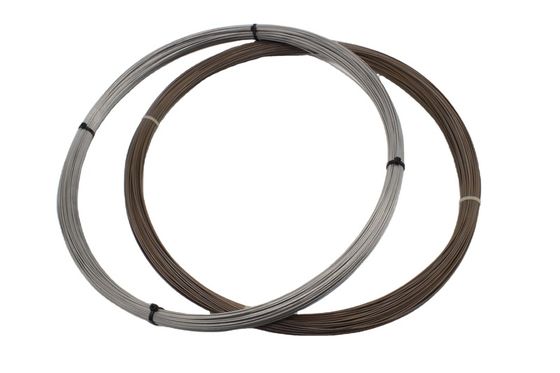

Wire |
Ø0.03—10.00mm |
|

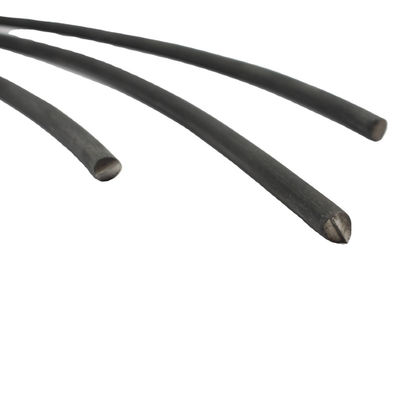

Wire rod |
Ø5.50—12.00mm |
|

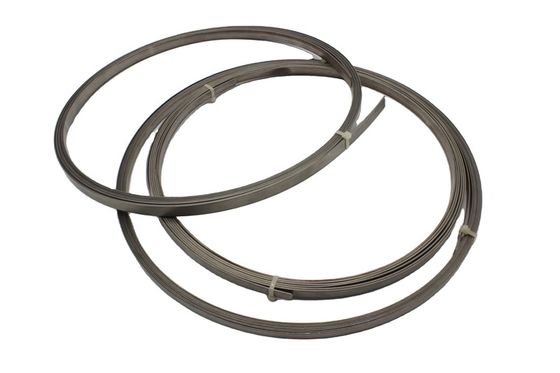

Ribbon |
Thickness 0.05—0.35mm |
|
Width 0.5—4.5mm |
|
|
Strip |
Thickness 0.5—2.5mm |
|
Width 5.0—48.0mm |
|
|
Hot rolled strip |
Thickness 4.0—6.0mm |
|
Width 15.0—38.0mm |
|
|
Steel bar |
Ø10.0—20.0mm |
Chemical Composition of Stainless Steels
|
Properties |
0Cr21Al6Nb |
0Cr25Al5 |
0Cr23Al5 |
0Cr19Al5 |
0Cr19Al3 |
1Cr13Al4 |
|
Nominal composition Cr Al Fe Ni |
24.0 6.0 Rest —— |
25.0 5.3 Rest —— |
22.0 5.0 Rest —— |
19.0 5.0 Rest —— |
19.0 3.7 Rest —— |
13.5 5.0 Rest —— |
|
Max.continuous operating temperature℃ |
1400 |
1300 |
1250 |
1200 |
1100 |
950 |
|
Temperature factor of the resistivityCt 800℃ 1000℃ 1200℃ |
1.03 1.04 1.04 |
1.05 1.06 1.06 |
1.06 1.07 1.08 |
1.05 1.06 1.06 |
1.17 1.19 —— |
1.13 1.14 —— |
|
Density(g/cm3) |
7.10 |
7.15 |
7.25 |
7.20 |
7.35 |
7.40 |
|
Melting point(approx.)(℃) |
1500 |
1500 |
1500 |
1500 |
1500 |
1450 |
|
Tensile strength(approx.)(N/mm2) |
750 |
750 |
750 |
750 |
750 |
750 |
|
Elongation at rupture(approx.)% |
16 |
16 |
16 |
16 |
16 |
16 |
|
Magnetic properties |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
We will choose the shipping way as you required: By sea, by air, by express, etc.
As for the costs and shipping period information, please contact us via telephone, mail or online trade manager.
BEIJING SHOU GANG-GITANE NEW MATERIALS GO.LTD(originally Shougang Steel Wire Plant)is a specialized manufcturer,with a history of over 50 years,for producing special alloy wires and strips of resistance heading alloys,electrical resistanec alloys,stainless steels and spiral wires for industrial and domestic applications etc.The company cover 88,000m² and has an area of 39,268m² for workroom. GITANE owns 500 clerks including 30 percents on technical duty. SG-GITANE obtained the certificate for quality systemof ISO9002 in 1996. SG-GITANE obtained the certificate for quality systemof ISO9001 in 2003.
SG-GITANE devotes much attention to the need of market and the development of new products,possesses a keen-witted and capable team of technical personnel.Welcome personalities of various circles and friends at home and abroad to visit,hold business talks and spread the economic cooperation with us.We would like to provide efficient service and excellent products for customers.
