Blue Golden Ribbon Heating Wire Rubber Insulated Resistance Alloys

Large Image : Blue Golden Ribbon Heating Wire Rubber Insulated Resistance Alloys

Product Details:

Place of Origin:	Beijing, China
Brand Name:	SPARK, SPARK
Model Number:	0Cr21Al6Nb

Payment & Shipping Terms:

Minimum Order Quantity:	100.0 Kilograms
Price:	$25.00(>=100 Kilograms)
Packaging Details:	We use plastic film packaging to package the axle wire, and the outer packaging of the shaft wire uses wooden pallet. The coils are packed in closed wooden cases.
Supply Ability:	1000 Kilogram/Kilograms per Week

Contact Now

Blue Golden Ribbon Heating Wire Rubber Insulated Resistance Alloys

Description

Place Of Origin:	Beijing, China	Brand Name:	SPARK
Model Number:	0Cr21Al6Nb	Type:	Bare
Application:	Heating	Conductor Material:	Aluminum
Conductor Type:	Solid	Insulation Material:	Rubber
Colors:	Golden/bright/blue	Product Name:	Fe-Cr-Al Alloy Wire
Standard:	GB/T 1234-2012	Size:	0.03-10.00
Packing:	Wooden Box	Elongation(â‰¥%):	16
Brand Name::	SPARK	Wire Diameter:	0.05-80mm
Ribbon Thickness:	0.08-0.4mm	Ribbon Width:	0.5-4.5mm

Product Description

Fe-Cr-Al alloys is one of the most widely used electrothermal alloys at home and abroad. It is characterized by high resistivity, small resistance temperature coefficient, good oxidation resistance, high temperature and so on . These alloys are widely used in making industrial heating equipments and domestic heating appliances. Fe-Cr-Al alloys are one of the main products of our company. All resistance heating alloys manufactured by our company are distinguished by uniform composition, high resistivity, accurate dimension, long operating life and good processability. Consumers can select the suitable grade according to different requirements.

Chemical Composition of Stainless Steels

Properties	0Cr21Al6Nb	0Cr25Al5	0Cr23Al5	0Cr19Al5	0Cr19Al3	1Cr13Al4
Nominal composition Cr Al Fe Ni	24.0 6.0 Rest ——	25.0 5.3 Rest ——	22.0 5.0 Rest ——	19.0 5.0 Rest ——	19.0 3.7 Rest ——	13.5 5.0 Rest ——
Max.continuous operating temperature℃	1400	1300	1250	1200	1100	950
Temperature factor of the resistivityCt 800℃ 1000℃ 1200℃	1.03 1.04 1.04	1.05 1.06 1.06	1.06 1.07 1.08	1.05 1.06 1.06	1.17 1.19 ——	1.13 1.14 ——
Density(g/cm3)	7.10	7.15	7.25	7.20	7.35	7.40
Melting point(approx.)(℃)	1500	1500	1500	1500	1500	1450
Tensile strength(approx.)(N/mm2)	750	750	750	750	750	750
Elongation at rupture(approx.)%	16	16	16	16	16	16
Magnetic properties	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

production process

Blue Golden Ribbon Heating Wire Rubber Insulated Resistance Alloys 1

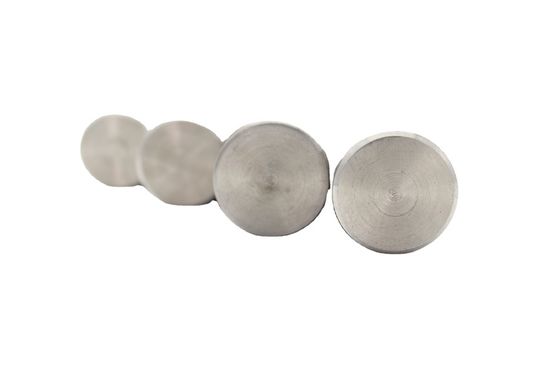

Raw material factory Smelt steel roll

Blue Golden Ribbon Heating Wire Rubber Insulated Resistance Alloys 7

detection Winding Annealing drawing
